Keuzeschakelaar
Distributie via
DigiKey
https://digikey.eao.com/p/eedab882

Selector switch 3 positions, round, Series 51, 3 positions, Raised, 2 NC + 2 NO, Plug-in terminal, 2.8 x 0.5 mm

  • 52-929.20
  • 52-574.F22A
  • 10-2J12.1069
  • 51-910

  • Lever bar colour
  • Lever colour
52-929.20
  • Switching angle
  • Switching action
52-574.F22A
  • Operating voltage kind of
  • Illumination colour
  • Operating voltage
10-2J12.1069
51-910
Accessoires & gereedschap toevoegen
Ter vergelijking toevoegen
0 in voorraad Laden ...
Toevoegen aan winkelwagentje
Uw product:
52-929.20
52-574.F22A
10-2J12.1069
51-910

52-929.20~10-2J12.1069~51-910~52-574.F22A

Selector switch 3 positions, round, Series 51, 3 positions, Raised, 2 NC + 2 NO, Plug-in terminal, 2.8 x 0.5 mm

Laden ...
Assortiment
HMI function:
Selector switch
Series:
Series 51
Voor
Front dimension:
Ø 18 mm
Front form:
Round
Montage
Design:
Raised
Mounting cut-out:
Ø 16 mm
Mounting type:
Panel mounting
Bedienings-/display-eenheid
Lever colour:
Grey
Lever bar colour:
Red
Lever shape:
short
Illumination colour:
White
Elektrische kenmerken
Switching voltage and switching current:
250 VAC, 5 A (cosφ 0.75)
Configuratie van contacten:
2 NC + 2 NO
Operating voltage:
24 V AC/DC +10%
Operation current:
2,5 - 5 mA ±15 %
Switching rating:
250 V @ 5 A
Lumi. Intensity:
750 mcd
Thermal current Ith:
5 A, according to EN / IEC 60947-5-1
Mechanische kenmerken
Terminal:
Plug-in terminal, 2.8 x 0.5 mm
Contact material:
Gold
Switching action:
Maintained - Rest - Momentary
Switching system:
Snap-action switching element
Switching positions:
3 positions
Switching angle:
90° left / 42° right
Tightening torque:
Fixing nut max. 0.5 Nm
Totaal gewicht:
0.014 kg
Omgevingscondities
IP front protection:
IP65
Operating temperature:
– 25 °C … + 55 °C
Meer
Material:
Metal
Product attributes:
With bar and marking dot
Wiring diagrams:
Wiring diagrams
Wiring diagrams
Product opslaan of delen
Bestanden downloaden
0 in voorraad Laden ...
Toevoegen aan winkelwagentje
Uw product bestaat uit het volgende 4 COMPONENTS:
52-929.20

52-929.20

Lever

Laden ...
Bedienings-/display-eenheid
Lever colour:
Grey
Lever bar colour:
Red
Lever material:
plastic
Lever shape:
short
Mechanische kenmerken
Weight:
0.001 kg
Certificaten
REACH:
REACH compliant
RoHS:
RoHS compliant
Meer
Short Description:
Lever, illuminative, Red, Grey, short, plastic
Product attributes:
With bar and marking dot
Hints:
With bar and marking dot
Bestanden downloaden
0 in voorraad Laden ...
Toevoegen aan winkelwagentje
52-574.F22A

52-574.F22A

Actuator

Laden ...
Voor
Front dimension:
Ø 18 mm
Front form:
Round
Montage
Design:
Raised
Mounting type:
Panel mounting
Bedienings-/display-eenheid
Lever material:
plastic
Lever shape:
short
Elektrische kenmerken
Switching voltage and switching current:
250 VAC, 5 A (cosφ 0.75)
Contacts:
2 NC / 2 NO
Switching rating:
250 V @ 5 A
Electric strength:
2500 VAC, 50 Hz, 1 min. between all terminals and earth, according to IEC 61058-1, part 15
Protection class:
ll
Thermal current Ith:
5 A, according to EN / IEC 60947-5-1
Mechanische kenmerken
Terminal:
Plug-in terminal, 2.8 x 0.5 mm
Contact material:
Gold
Switching action:
Maintained - Rest - Momentary
Switching system:
Snap-action switching element
Switching system:
Self-cleaning, double-break snap action switching system, 2 normally closed and 2 normally open contact per element.
Switching positions:
3 positions
Switching angle:
90° left / 42° right
Mechanical lifetime:
100 000 cycles of operation
Tightening torque:
Fixing nut max. 0.5 Nm
Wire cross section:
Max. wire cross-section 2 wires with 1 mm
Max. wire cross-section of stranded cable 2 x 0.75 mm²
Weight:
0.011 kg
Omgevingscondities
IP front protection:
IP65, according to DIN EN 60529
Operating temperature:
– 25 °C … + 55 °C
Storage temperature:
– 40 °C … + 85 °C
Certificaten
Approbations:
CB (IEC 61058-1), CQC, CSA, DNV, ENEC (EN 61058-1), UL
Conformities:
CE, UKCA, 2011 / 65 / EC (RoHS), 2014 / 30 / EU (EMC), 2014 / 35 / EU (LVD)
REACH:
REACH compliant
RoHS:
RoHS compliant
Meer
Short Description:
Actuator, Ø 18 mm, optional illuminative, short, Round, 2 NC / 2 NO, Maintained - Rest - Momentary, Plug-in terminal, 2.8 x 0.5 mm, IP65, according to DIN EN 60529
Hints:
Illuminative
Switching positions:
Switching positions

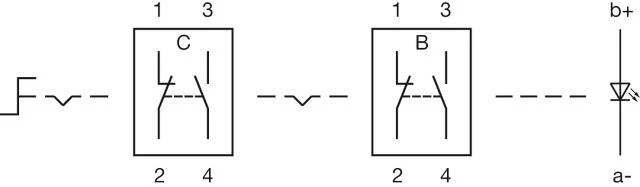

Wiring diagrams:
Wiring diagrams

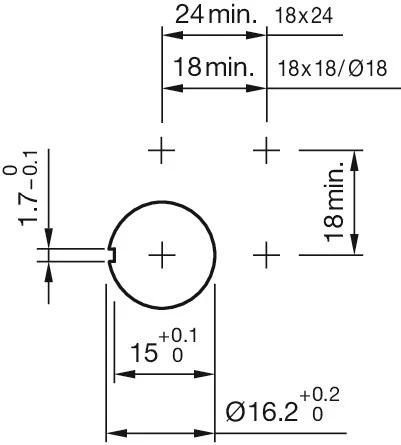

Mounting cut-outs:
Mounting cut-outs

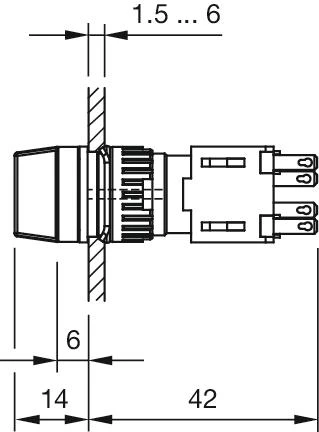

Dimension drawings:
Dimension drawings
Bestanden downloaden
0 in voorraad Laden ...
Toevoegen aan winkelwagentje
10-2J12.1069

10-2J12.1069

Single-LED

Laden ...
Bedienings-/display-eenheid
Illumination colour:
White
Elektrische kenmerken
Operating voltage:
24 V AC/DC +10%
Operation current:
2,5 - 5 mA ±15 %
Lumi. Intensity:
750 mcd
Mechanische kenmerken
Weight:
0.001 kg
Certificaten
REACH:
REACH compliant
RoHS:
RoHS compliant
Meer
Short Description:
Single-LED, T1 ¾ MG, White, 24 V AC/DC +10%
Kind of iIllumination:
Single-LED
Hints:
Due to high surface temperatures, the series resistor must not be soldered directly to the terminals of the equipment (use a terminal plate)
When using AC/DC types with AC operation, slight flickering can occur
The luminous intensity stated is for when used with DC
Electrical and optical data are measured at 25 °C
The specified versions are built with a protection diode (halve wave rectifier) in series and the LED
Luminosity and wave length variations caused by LED manufacturing processes may cause slight differences regarding the illumination. The customer has to decide what resistor shall be used to the LED
Where supply voltages are over 48 V, a voltage-reduction element (external protective series resistor) must be used.
Keep to the country specific safety instructions
Wiring diagrams:
Wiring diagrams
Dimension drawings:
Dimension drawings
Bestanden downloaden
0 in voorraad Laden ...
Toevoegen aan winkelwagentje
51-910

51-910

Anti-twist ring

Laden ...
Mechanische kenmerken
Weight:
0.001 kg
Certificaten
REACH:
REACH compliant
RoHS:
RoHS compliant
Meer
Short Description:
Anti-twist ring, Metal
Internal size:
Ø 16,2 mm
Material:
Metal
Product attributes:
For front panel thickness max. 2 mm
Bestanden downloaden
0 in voorraad Laden ...
Toevoegen aan winkelwagentje
