View detailed product overview
Distribution by
DigiKey
https://digikey.eao.com/component/84-920/en/p...

PCB plug-in base

  • 84-920

84-920 PCB plug-in base, 20.3 mm x 15.8 mm x 8.3 mm, Plastic, according to UL 94 V0, PCB terminal, Axial
84-920
Component for 13.32 USD
Add to Cart
Your product:
84-920

84-920

PCB plug-in base

13.32 USD114 in stock
Mechanical Characteristics
Terminal:
PCB terminal
Weight:
0.003 kg
Other
Short Description:
PCB plug-in base, 20.3 mm x 15.8 mm x 8.3 mm, Plastic, according to UL 94 V0, PCB terminal, Axial
Titel Accessory:
PCB plug-in base
Dimension:
20.3 mm x 15.8 mm x 8.3 mm
Material 2:
Metal
Material:
Plastic, according to UL 94 V0
Product attributes:
For Emergency stop switch, stop switch
Hints:
Soldering instructions: Suitable for wave, selective or manual soldering. Max. soldering temperature 240° / 3 min.
Pins:
Axial
Suitable for connection:
Plug-in terminal
Component layouts:
Component layouts
A = Drilling plan (component side)
B = Centre from switch
C = Anti-twist protection
D = Pins for contacts/LED
E = Positioning hole

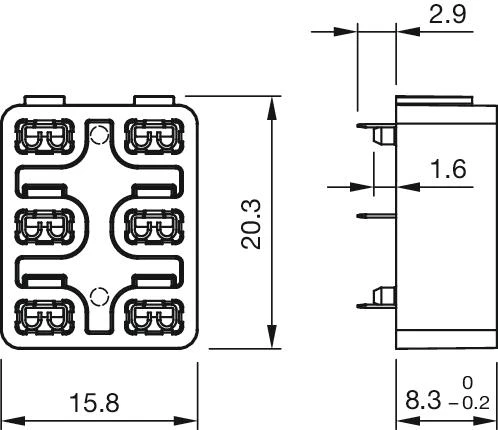

Dimension drawings:
Dimension drawings
Download files
